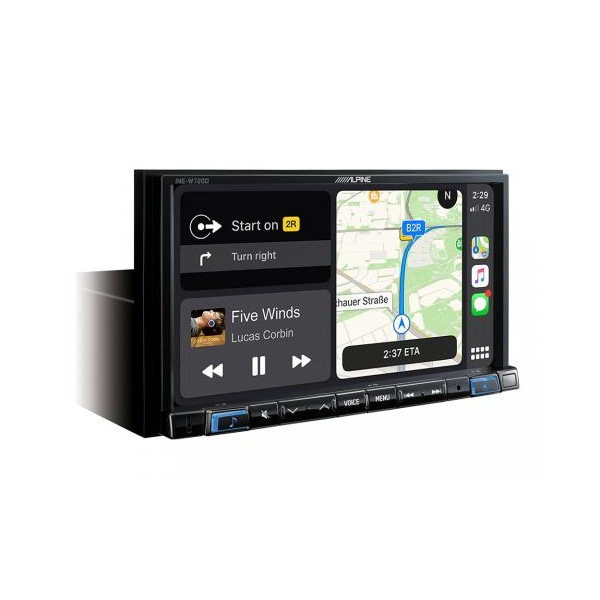

iLX-702D Zobraziť plnú veľkosť

iLX-702D

7" digitálna multimediálna stanica podporujúca CarPlay, Android auto, DAB +, flac, USB playback ..

Viac detailov

Smart Online Navigation with Google Maps iLX-702D
High Resolution WVGA Touch Screen  - iLX-702D
Connect USB and HDMI Sources - iLX-702D

High Resolution WVGA Touch Screen

The 7-inch (17.8cm) high-resolution WVGA display allows full operation of the system via touch-screen technology and features the latest video enhancement technology for outstanding picture clarity, contrast and resolution. This allows online navigation maps to be displayed in stunning detail, while movies or video clips become a real cinematic experience. The user interface is very intuitive and is designed to perfectly integrate into your vehicle. You can choose from a variety of screen colours and designs to best match your taste and vehicle.

Connect USB and HDMI Sources

You can connect USB sticks and portable hard drives to playback audio and MP4 video files. The iLX-702D is also equipped with an HDMI input to connect the optional Alpine DVD player DVE-5300 or any other portable media player with HDMI output. You can also connect your smartphone if an HDMI adapter for your phone model is available to enjoy the video or photo content on the Alpine screen (requires additional cables and adapters). The iLX-702D includes an HDMI output as well to connect a rear monitor system via HDMI.
Note: The HDMI output is a pass-through of the HDMI input and can therefore not be used to output USB video content, Apple CarPlay or Android Auto content.

DAB+ Digital Radio - iLX-702D
High-end Sound Tuning Options - iLX-702D

DAB+ Digital Radio

The built-in DAB/DAB+/DMB tuner uses the most advanced digital technology to deliver radio reception in outstanding, noise-free sound quality. DAB+ also offers many other advantages over traditional FM radio: select from a much wider range of radio stations and after an initial station scan you can easily select your desired channels from an alphabetic and genre list of available stations.

High-end Sound Tuning Options

The iLX-702D puts the power of advanced sound processing in your car with BASS ENGINE SQ to maximise bass sound and overall tone balance, plus lots of custom tuning functions like Digital Time Correction, Digital X-Over and Dual 9-band Parametric EQ. Best of all, you can set them easily from your smartphone with the Alpine TuneIt App. You also get Media Xpander, 24-Bit DAC and 3 PreOuts (4 Volt) as well.

Built-in Bluetooth® Technology - iLX-702D
Drive-Assist Cameras - iLX-702D

Built-in Bluetooth® Technology

The built-in Bluetooth® module allows wireless connection of a mobile phone for hands-free communication. A very intuitive user interface makes it very easy to set microphone and speaker volume. It also includes a speed dial function for the most frequently called numbers. Bluetooth® also enables audio streaming from the phone: audio content or even internet radio can be wirelessly transferred to your Alpine unit.

Drive-Assist Cameras

A rear view camera is a great way to make reversing safer. The camera image automatically comes on when you shift into reverse, and distance guides that can be adjusted to match your car size will appear on the screen to help you safely park your car. Alpine offers a wide variety of front and rear facing cameras, including multi-view cameras with selectable viewing angles and touch-control from your screen. You can even view the camera screen and parking sensor screen simultaneously.

7-inch Screen with 1 DIN chassis

More and more vehicles feature a dashboard space for a 7-inch or 8-inch screen, however behind the screen there is often no space to fit a full 2DIN chassis. For this reason, Alpine offers 2 different chassis versions of this product. The regular iLX-702D with the chassis on the lower positions, as well as the modified version called iLX-702DM (the 1DIN chassis on its upper position on the back).

Works with Apple CarPlay - iLX-702D
Works with Android Auto - iLX-702D

Works with Apple CarPlay

The innovative iLX-702D with Apple CarPlay compatibility brings you a smarter way to use your iPhone on the road. Apple CarPlay gives iPhone users an incredibly intuitive way to make calls, use maps, listen to music and access messages with just a word or a touch. You can even enjoy Spotify, internet radio or podcasts while on the road for a truly connected experience. Simply connect your CarPlay enabled iPhone to the USB port of your Alpine and you are ready to go.

Works with Android Auto

Android Auto was designed with safety in mind. With a simple and intuitive interface, integrated steering wheel controls, and powerful new voice actions, it's designed to minimize distraction so you can stay focused on the road. Android Auto automatically brings you useful information, and organizes it into simple cards that appear just when they're needed. Both Apple CarPlay and Android Auto can access the navigation antenna of the iLX-702D for highest accuracy when using the navi apps.

Sygic - iLX-702D
Google Maps - iLX-702D

Sygic

The app will guide you safely to your destination even without an internet connection. Sygic includes high-quality 3D maps. Regular map and application updates are free of charge. With Sygic GPS Navigation, you can easily escape the traffic or find the best parking spot. You will also have up-to-date information about fuel prices on petrol stations. And you will avoid speeding tickets with speed limit and speed camera warnings (currently available for Apple CarPlay only).

Google Maps

Over 220 countries and territories mapped and hundreds of millions of businesses and places on the map. Get real-time GPS navigation with satellite view, traffic, and transit info, and explore local neighborhoods by knowing where to eat, drink and go - no matter what part of the world you’re in.

Waze - iLX-702D
Spotify - iLX-702D

Waze

Waze is another highly popular, community-based navigation app. Always know what’s happening on the road. Even if you know the way, Waze tells you instantly about traffic, construction, police, crashes, & more. If traffic is bad on your route, Waze will change it to save you time.

Spotify

Spotify is the best way to listen to music and podcasts. Search for any track, artist or album and listen for free. Make and share playlists. Build your biggest, best ever music collection. Get inspired with personal recommendations, and readymade playlists for just about everything.

TuneIn Radio - iLX-702D
Amazon Music - iLX-702D

TuneIn Radio

TuneIn Radio brings you live sports, music, news, podcasts, and internet radio from around the world. Listen to the audio you love on any device and let the moments move you.

Amazon Music

Amazon Music changes the way you find and play the music you love. Listen free with a Prime membership or get more with Amazon Music Unlimited. Go hands-free with Alexa - no searching or browsing required. Explore curated playlists and stations, always ad-free and with unlimited skips. Download your favorite albums, songs, and playlists to your mobile device for offline listening. Your music is available anytime, anywhere.



Vlastnosti & Špecifikácie

FEATURES

Tuner

  • Memory Presets: Preset Stations (FM: 24 / MW: 6 / LW: 6)
  • Memory: Auto Memory
  • Seek Mode: Local / DX Selection

RDS

  • RDS Functions: PI, PS, AF, TA, TP, PTY, NEWS, RADIO TEXT

DAB Tuner

  • DAB+ Tuner Built-in
  • DAB+/DMB Supported
  • DAB+ Slideshow Service
  • DLS (Dynamic Label Service)
  • DAB Service Following
  • RDS Fallback (where available)
  • Service Preset: 18 Preset Memory
  • Auto Ensemble/Service Memory
  • Service Search Function
  • PTY Search Function
  • Alphabet Search Function
  • Antenna Power Supply Selection

BLUETOOTH®

  • Built-in BLUETOOTH® Module
  • Wide Band Speech Technology
  • HFP (Hands-Free Profile) Compatible
  • Streaming Music: A2DP (Advanced Audio Distribution Profile) Compatible
  • Streaming Music Control: AVRCP (Audio / Video Remote Control Profile) Ver.1.5 Compatible
  • Advanced BLUETOOTH® Technology
  • Connection: SSP (Simple Secure Pairing) Supported
  • Individual Profile Connection Hands Free Phone and Music Streaming
  • Phone Book: Phone Book Synchronization
  • Speed Dial: 4 Preset Memory (per phone)
  • Multiple Phone Number Registration: 5 Phone Numbers can be stored for one name
  • Device Name Display
  • Auto Answer
  • Call History Display: Outgoing Calls / Incoming Calls / Missed Calls
  • Redial Function
  • Speech Volume Level Adjustment: Possible for Outgoing and Incoming Volume
  • DTMF (Touch-Tone) Function
  • Signal Strength Indicator
  • Battery Level Indicator
  • Menu Language Selection: 24 Languages
  • Firmware Updatable
  • Microphone Included

Made for iPod® / iPhone®

  • Compatibility for iPod/iPhone: compatible with all models except 1st and 2nd generation iPhone
  • Connection: KCU-461iV / KCU-471i Required (Sold separately)
  • Music & Video Playback Compatible with KCU-461iV only
  • Available Selections: Playlist / Artist / Album /Song / Podcast / Genre / Composer / Audiobook
  • Alphabet Search
  • Artwork Display
  • Direct Up / Down: Playlist / Artist / Album / Genre / Composer
  • M.I.X. (Shuffle) Play: Song, Albums, All
  • Repeat
  • Battery Charging

Connectivity

  • Works with Apple CarPlay (requires CarPlay enabled iPhone)
  • Works with Android Auto (Requires Android Auto enabled smartphone)

Navigation Function

  • Online navigation capability with Apple CarPlay and Android Auto
  • Includes GPS / Glonass enabled navigation antenna
  • Direct navigation access key to launch CarPlay or Google maps

USB Media Connection

  • USB Connection: USB Extension Cable Included
  • Music Playback: FLAC/MP3/WMA/AAC compatible
  • Video Playback: MP4 compatible
  • File / Folder Name Search
  • Tag Info Search
  • Folder Up / Down
  • M.I.X. Random Play
  • Repeat

Sound Tuning

  • Bass Engine SQ
  • Bass Engine™ Pro
  • Subwoofer Level Adjustment
  • Subwoofer Phase Select
  • 2 V High Voltage PreOut
  • Equalizer: Flat, Pops, Rock, News, Jazz, Electrical Dance, Hip Hop, Easy Listening, Country, Classical
  • Dual HD EQ (9-band Parametric Equalizer front/rear)
  • 6 Channel Digital Time Correction
  • Digital Crossover Setting
  • Customized Sound Setting by Car Type
  • MediaXpander HD
  • Application Volume Level Setting
  • Sound Setting Data Download
  • Easy, Step-by-Step Sound Customization
  • Alpine TuneIt App ready

General

  • Power Output: 4 x 50 W High Power Amplifier
  • Advanced Power IC
  • Display: 7 inch Capacitive WVGA High Resolution Display
  • White LED Backlighting System
  • Control Type: Touch, Drag, Flick
  • My Favorites Function
  • Automatic Setting Change for 2 Users
  • High Grade Audiophile Design
  • 3 PreOuts (2 V, Front / Rear / Subwoofer)
  • AUX-In: 1 A/V AUX Input (3.5mm micro jack)
  • Steering Wheel Remote Control Function
  • Vehicle Display Interface Ready (UART connection)
  • Remote Control Ready
  • Navigation Guidance Mix
  • Camera Connection & Built-in Controls for Multi-View Cameras
  • Camera Guide Line Adjustment
  • Rearview Camera Display Automatic Boot-up
  • Simple Mode & Info Mode Display Selection
  • Visual EQ
  • Live Contrast Adjustment
  • Menu Language: 24 Languages (for AV / Bluetooth)
  • Clock
  • Auto Dimmer
  • Anti-theft security code
  • Firmware Updatable
  • Power Antenna Lead
  • Remote Turn-On
  • HDMI Input (Alpine Special HDMI connector required)
  • Engine Start-Stop unaffected
  • Ready for optional DVD Player DVE-5300

Installation

  • Perfect F.I.T. Kit Solutions available

SPECIFICATIONS

Screen

  • Screen Size: 7 inch Capacitive WVGA
  • LCD Type: Transparent Type TN LCD
  • Operation System: TFT Active Matrix
  • Number of Picture Elements: 1,152,000 pixels (800 x 3 x 480)
  • Illumination System: White LED Backlighting
  • Effective Number of Picture Elements: 99.99%
  • Colour System: NTSC, PAL

Max Power Output Ratings

  • Max Power Output: 4 x 50 W

FM Tuner

  • Tuning Range: 87.5 - 108.0 MHz
  • Mono Usable Sensitivity: 8.1 dBf (0.7 µV / 75 ohms)
  • 50dB Quieting Sensitivity: 12 dBf (1.1 µV / 75 ohms)
  • Alternate Channel Selectivity: 80 dB
  • Signal-to-Noise Ratio: 65 dB
  • Stereo Separation: 35 dB
  • Capture Ratio: 2 dB

MW Tuner

  • Tuning Range: 531 - 1,602 kHz
  • Usable Sensitivity (IEC Standard): 25.1 µV / 28 dBf

LW Tuner

  • Tuning Range: 153 - 281 kHz
  • Usable Sensitivity (IEC Standard): 31.6 µV / 30 dBf

USB

  • USB Requirements: USB 2.0
  • Max. Power Consumption: 1,500 mA (CDP Support)
  • USB Class: Mass Storage Class, Play From Device
  • File System: FAT 16/32
  • MP3 Decoding: MPEG-1/2 AUDIO Layer-3
  • WMA Decoding: Windows Media™ Audio
  • AAC Decoding: ACC-LC format ′′.m4a′′ file
  • FLAC Decoding
  • Number of Channels: 2-Channel (Stereo)
  • Frequency Response: 5 - 20k Hz ±1 dB *Frequency Response may differ depending on the encoder software/bit rate
  • Total Harmonic Distortion (at 1kHz): 0.008%
  • DynamicRange(at 1kHz): 95 dB
  • Signal-to-Noise Ratio: 100 dB
  • Channel Separation (at 1kHz): 85 dB

GPS / Glonass

  • GPS / Glonass compatible navigation antenna included

BLUETOOTH®

  • BLUETOOTH® Version: Bluetooth V2.1+EDR
  • Output Power: +4 dBm Max. (Power class 2)
  • HFP: HFP (Hands Free Profile)
  • OPP (Object Push Profile)
  • PBAP (Phone Book Access Profile)
  • HSP (Head Set Profile)
  • A2DP: A2DP (Advanced Audio Distribution Profile)
  • AVRCP: AVRCP (Audio/Video Remote Control Profile)
  • SPP (Serial Port Profile)

Sound Tuning

  • Subwoofer Level Adjustment: 0 to +15
  • Subwoofer Phase Setting: 0° or 180°
  • BASS ENGINE SQ: 5Mode, Level 0 to +6
  • HighPassFilter: 20 / 25 / 31.5 / 40 / 50 / 63 / 80 / 100 / 125 / 160 / 200 Hz
  • HighPassFilter (Slope): Off / -6 / -12 / -18 / -24 dB/oct.
  • HighPassFilter (Gain): -12 to 0 dB
  • LowPassFilter: 20 / 25 / 31.5 / 40 / 50 / 63 / 80 / 100 / 125 / 160 / 200 Hz
  • LowPassFilter (Slope): Off / -6 / -12 / -18 / -24 dB/oct.
  • LowPassFilter (Gain): -12 to 0 dB
  • Time Correction: 0.0 - 9.9ms (0.1ms step)
  • Dual HD EQ Front + Rear
  • Parametric Equalizer (Band 1): 20 - 100 Hz
  • Parametric Equalizer (Band 2): 63 - 315 Hz
  • Parametric Equalizer (Band 3): 125 - 500 Hz
  • Parametric Equalizer (Band 4): 250 - 1k Hz
  • Parametric Equalizer (Band 5): 500 - 2k Hz
  • Parametric Equalizer (Band 6): 1k - 4k Hz
  • Parametric Equalizer (Band 7): 2k - 7.2k Hz
  • Parametric Equalizer (Band 8): 5.8k - 12k Hz
  • Parametric Equalizer (Band 9): 9k - 20k Hz
  • Parametric Equalizer (Gain): -14 to +14
  • Application Volume Level Setting: -14 to +14

HDMI Section

  • Input Format 720p/480p/VGA
  • Output Format 480p

General

  • Power Requirement: 14.4 V. DC (11-16V allowable)
  • Pre Output Voltage (Before Clipping): 2 V / 10k ohms
  • Maximum Mounting Angle: 30°

Dimensions

  • Din Size: 1DIN chassis and 7” Capacitive Touch Screen
  • Chassis Size (W x H x D) mm: 178 x 100 x 147 mm
  • Nose Piece Size (W x H x D) mm: 170 x 96 x 17 mm

ilX-702D is recommended for most cars.

ilX-702DM required for:

Maker
Model
Model year
Installation Kit
Fiat
500 Type 312MCA
2015 →
Fiat
500X Type 334
2014 →
SEAT
Leon 3 / ST / SC / SC Cupra (5F)
2012 - 2016
Volkswagen
Crafter
2017 →
